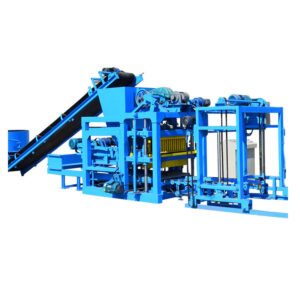

QT4-24 Semi Automatic Cement Block Machine
QT4-24Cement Brick Machine line Basic requirements for Start this brick plant:
the following information for QT4-24 hollow block machine is theoretically for reference, it will be a little different vary from different clients as per their real production condition.
| land area | 300 Square Meters | Water Consumption | 2.5 T/day |
| Workshop area | 50 Square Meters | Electricity Voltage &Frequency | 220V/380V/415V;50HZ/60HZ |
| Labors Quantity | 6 workers | Power Consumption | 22.45KW*8 Hours=179.6 KWH; |
| Cement Consumption | 7.3Tons per day | Sand consumption | 29.2 tons per day |
| Crushed stones consumption | 36.5 tons per day |
(1) JQ350 concrete mixer for QT4-24 Paver Brick Machine
Diameter 1.2 M
Power: 7.5-4KW or 5.5-6KW
Input : 500L
Output: 350L
Dimension: 1.2*1.2*1.4 M
Weight: 350KG
About the Concrete Pan Mixer
block machine factory is using truck rear axle instead of normal gear reducer more now; this makes the concrete mixer stronger and more durable.
The buyer can also fix one 10 CM round steel plate on the top of the mixer, in order to avoid the raw materials coming out when the mixing blades are at high rotating speed.
Also there are Two ways to make the mixer more anti-friction
Fix the spacers on the interior and bottom of the pan mixer, the spacers can be replaced by spare. The spacers can be changed one by one if any is broken, but adding spacers is a little costly;
The second method is to Fix one round steel sheet inside the pan mixer, this will also increase the sturdiness.
(2）6 M belt conveyor for QT4-24 Cement Brick Machine
Power: 1.5 KW
Type: Chain type
Belt width: 400mm
Length: 6 M;
Client can also choose 7 meters or 8 Meters length belt conveying machine as per the land area.
（3) QT4-24 Host Flyash Brick Machine
Power: 13.45KW
Raw materials discharging motor: 0.75KW
Bottom Vibration Motor 3KW*2
Upper Vibration Motor 2.2KW
JQ350 Reducer
Mould lifting Motor: 3KW
Top Mould Push-Pull motor： 0.75KW
Block Conveying out motor：0.75 KW
Dimension: 2050*1900*2650mm
Weight:1800KG
（4）Brick Conveyor Trolley for QT4-24 Semi Automatic Block Machine
The manual block conveying trolley is used to carry the finished blocks to curing area.
One block machine line is with two sets of manual block conveying carts.
（5） Block Stacking Machine (this is upgraded configuration, equipment with this stacking Machine, no need the manual brick conveyor trolley, but need an electric forklift to carry stacked blocks to curing area. Or use the manual trolley dedicated for stacking machine)
Power: 1.5 KW
Dimension:1.75*1.75*2.3 M
Weight: 500KG
