Simple Fully Autoamatic Type QT4-18 Concrete Block Making Machine

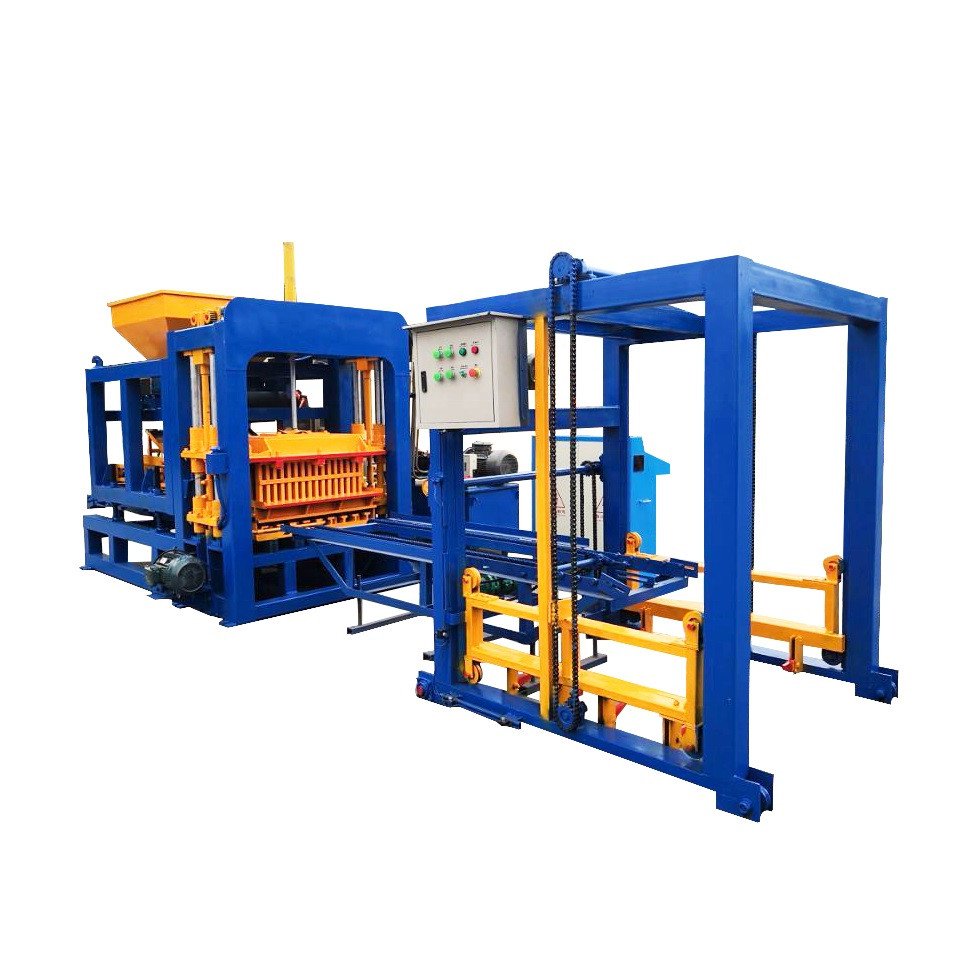

                                QT4-18 Simple Automatic Concrete Block Making Machine

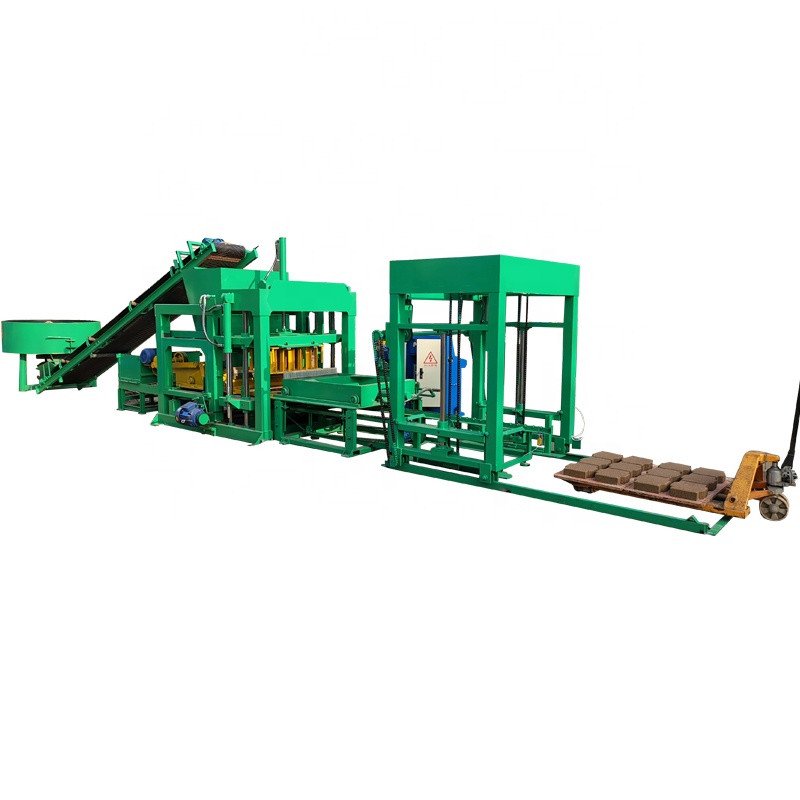

1.QT4-18 Block Making Machine Line Generally Description

QT4-18 simple automatic block making machine is a hot selling block machine line, it makes different blocks or bricks under different block moulds, the block mould is changeable, the block machine line is simple but automatic, its price is wallet-friendly, it is fit for middle and small investors for starting concrete block factory.

QT4-18 brick machine Capacity: 6400 pieces of 8 inch hollow blocks per shift of 8 hours;

QT4-18 automatic block machine line Price Range: 16100USD – 29300USD, the block machine price is as per the extra block moulds quantity and brick pallets quantity, etc;

2.QT4-18 Automatic Brick Machine line Basic requirements for Production Start:

the following information for the QT4-18 brick machine is theoretically for reference, the real site production data may be small different as per different raw materials etc.

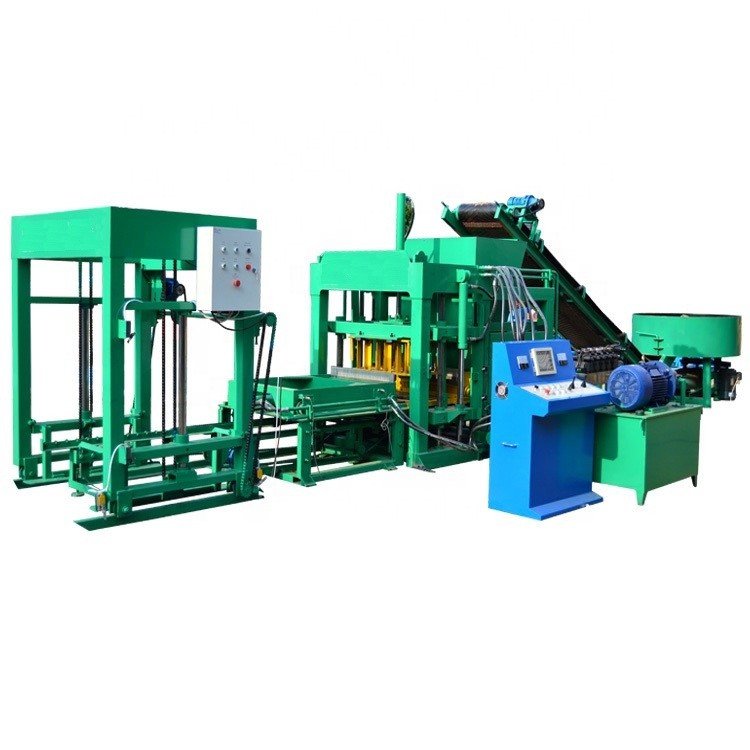

3.Detailed Introduction of each single machine from QT4-18 Automatic Concrete Block Machine Line

(1) Concrete Mixer for QT4-18 brick machine line

Model: JQ500 Concrete Mixer

Power: 11KW-4 or 7.5KW-6

Input Capacity: 800L

Output Capacity:500L

Size:1.5(L)*1.5(W)*1.4(H)m

Weight: 750kg

Barrel height: 60cm

Barrel thickness: 8mm

Bottom thickness: 7mm

The client can also choose to add an electrical control box to control the concrete mixer

(2) Belt Conveying Machine for QT4-18 Brick Making Machine line

Model: 6M Belt Conveyor

Power: 1.5KW

Belt Width: 500mm

Weight:550kg

Client can also choose 8 Meters length for the block machine as per land area.

 block machine manufacture is using chain type rotating system instead of triangle belts for rotating the belts, it is much better, long life, easy maintaining.

(3) (3) Brick Pallet Feeding Machine for QT4-18 Brick Making Machine line

Model: Brick Pallet Feeder

Connected with host brick machine;

block machine manufacture modified this feeding machine by making it to be a long steel plate to push the pallet, instead of two hooks at two ends, this can protect the brick pallet from damage;

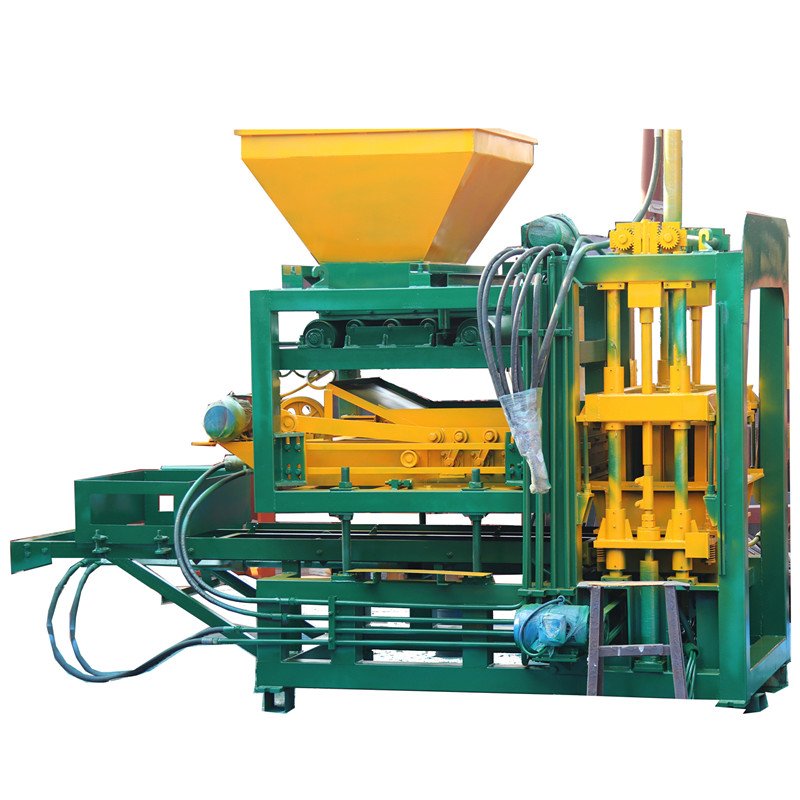

(4)Model: QT4-18 Host Brick Machine

Size:3740(L)×2250(W)×2450(H)mm

Machine Weight:4000kg

host brick Machine power: 25KW

Motors power List:

① Hydraulic Station Motor: 11 KW

② Vibrator Motor: 5.5KW*2=11KW

③ Material Discharge Motor: 1.5KW

④ Material Distributor Motor: 1.5KW

Moulding Period 15-20 S

Vibration Force: 50-65KN

Diesel Generator Capacity: 50KVA

 block machine manufacture is using 11KW motor for hydraulic station instead of the normal 7.5KW motor, this gives the bricks more pressure on pressing.

（5) PLC for QT4-18 Block Making Machine

PLC is an advanced microcomputer system, Automatic fault diagnosis, procedure is interlocked, can ensure every motion of the block machine fluently and in high efficiency. The Siemens brand PLC and touch screen is optional.

The Electrical panel is using Schneider breaker and China top brand electronic elements like Delixi or CHNT brand electromagnetic switch as standard configuration, , having a reliable performance and low fault rate. We also equipped the frequency converter to make the electronic parts work at a safe condition.

The setting of every machine motion can be done via the touch screen, perfect human-machine communicating system. And there is also a standby software as backup.

(6) Hydraulic Station for QT4-18 Block Machine line

The electromagnetic valve is a unique proportional valve multi-channel control system, all-round adjustment of any action, so that the machine is running more reliable and sensitive, it is made from Taiwan CYLCA brand.

(6) Model: Blocks Conveyor Machine for QT4-18 Block Making Machine

Power: 1.1KW

Function: after blocks are are made, this block conveyor will transport the blocks out from block machine, to the block stacking section.

(7) Single Block Pallets Stacking Machine for QT4-18 Block Machine

Power: 3.0KW

Function: to Stack the finished blocks to several layers, make blocks are ready for transport by forklift or manual trolley.

The client can also choose double pallets stacking machine to replace the single pallet stacking machine here.

(8)  Manual Trolley for QT4-18 Block Machine Line

Function: transport the produced blocks to curing area; there are two sets with the stacking machine.

Client can also buy diesel forklift or electric forklift to save labor in this procedure;  block machine factory has electric forklift dedicated for block factory use.

(9) JQ350 Pigment Pan Mixer for QT4-18 Block Making Machine Line

Diameter: 1.2M;

Power: 7.5-4KW or 5.5-6KW

Input Capacity: 500L

Output Capacity:350L

Size:1.2(L)*1.2(W)*1.4(H)m

Weight: 550kg

Barrel height: 50cm

Barrel thickness: 8mm

Bottom thickness: 7mm

This is used for mixing the pigments with white cement.

(10)  Brick Face Pigments feeding Machine for QT4-18 Block Making Machine

Function: used to feed pigments onto the paver bricks surface.

This part is optional, the client who makes paver bricks with color can buy this machine.

(11) Brick Pallet Loading Machine for QT4-18 Block Making Machine Line

Power: 5.2KW;

Function: this brick pallet loader is used to load the brick pallets into Pallet Feeder of brick machine, can save a worker here.

(12) Model: GMT brick pallets supported for QT4-18 brick machine

Life: 8 years

Density: 1200kg/Cubic meters

GMT pallet is the most popular and cost to performance pallet now.

Pallet size: 880*550*22mm

（13) Spare parts for QT4-18 block machine line

block machine factory provides tools, easy wearing parts such as pliers, screwdrivers, springs, bolts and nuts, sensors, triangle belts, etc

4.Capacity of different blocks models under QT4-18 Block Making Machine
