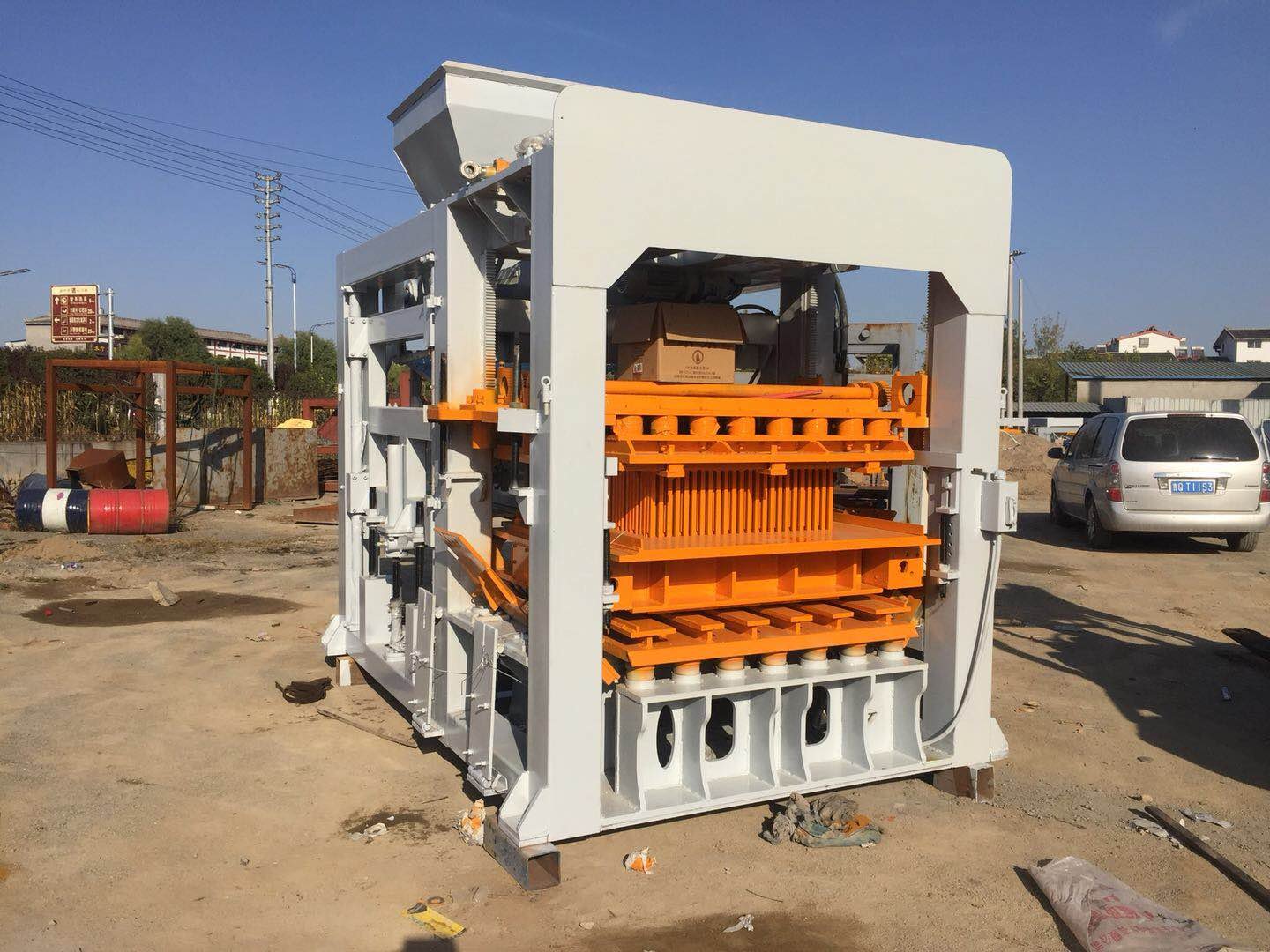

QT8-15 Concrete Block Making Machine line Basic requirements for start-up:
the following basic information for the QT8-15 Concrete Block Making Machine is for reference, the real site production data may be small different as per different raw materials etc.
| land area | 2500-6500 Square Meters | Water Consumption | 9.6 T/day |
| Workshop area | 200 Square Meters | Electricity Voltage &Frequency | 220V/380V/415V; 50HZ/60HZ |
| Labors Quantity | 6 workers | Power Consumption | 76.8KW*8 Hours=614.4 KWH; |
| Cement Consumption | 25.2 Tons per day | Sand consumption | 100.8 tons per day |
| Crushed stones consumption | 124.8 tons per day |
various blocks Daily productivity of QT8-15 concrete block making machine
| QT8-15 Block Machine production capacity | ||||||
| Size(LxWxH) (mm) | Forming Period (S) | Photo | Pcs/ Mould | Pcs/Hour | Pcs/ 8 hours | |
| (1) | hollow block 400*250*200 | 15 | 6 | 1440 | 11520 | |
| (2) | hollow block 400*200*200 | 15 | 8 | 1920 | 15360 | |
| (3) | hollow block 400*150*200 | 15 | 10 | 2400 | 19200 | |
| (4) | hollow block 400*100*200 | 15 | 16 | 3840 | 30720 | |
| (5) | Solid Brick 240*50*115 | 15 | 42 | 10080 | 80640 | |
| (6) | Porous Brick 240*115*90 | 15 | 21 | 5040 | 40320 | |
| (7) | Curbstone 500*200*300 | 15 | 2 | 480 | 3840 | |
| (8) | “I” shape paver brick 200*163*60 | 20 | 16 | 2880 | 23040 | |
| (9) | “S” Shape Paver Brick 225*112.5*60 | 20 | 21 | 3780 | 30240 | |
| (10) | Holland Brick 200*100*60 | 20 | 28 | 5040 | 40320 | |
| (11) | Square Paver 250*250*60 | 20 | 9 | 1620 | 12960 | |
- Packing list of QT8-15Automatic Block Machine full line
| 1 | 100 ton Cement silo (optional) | 1 set | 11 | QT8-15 Host Block making Machine | 1 set |
| 2 | Cement Screwing machine (optional) | 1 set | 12 | PLC control Panel for host brick machine | 1 set |
| 3 | Cement scale (optional) | 1 set | 13 | Hydraulic Station | 1 set |
| 4 | PLD1200 Concrete batching machine | 1 set | 14 | Block conveyor Machine | 1 set |
| 5 | 7M belt conveying Machine | 1 set | 15 | Blocks Stacking Machines | 1 set |
| 6 | JS750 Concrete mixer | 1 set | 16 | JQ350 Pigment Mixer (optional) | 1 set |
| 7 | PLC control panel for concrete mixer and batching machine (optional) | 1 set | 17 | 6M belt conveying machine (optional) | 1 set |
| 8 | 8M belt conveying machine | 1 set | 18 | pigments feeding machine (optional) | 1 set |
| 9 | Brick pallet loading machine (optional) | 1 set | 19 | GMT brick pallet | 1200 pieces |
| 10 | Brick Pallet Feeder | 1 set | 20 | Spare parts | 1 set |
